Cuplock System
-
Cuplock SystemDouble Cantiliver Frame
Double Cantilever have two blade ends connected
to standard to ensure the fixed connection with
WTD Cuplock vertical standard. -
Cuplock SystemForged Double Coupler
Couplers Are used to connect the scaffolding tube
to the standards.
Double coupler is used to connect 90 degree
connection. -
Cuplock SystemForged Swivel Coupler
Couplers Are used to connect the scaffolding tube
to the standards.
Double coupler is used to connect 90 degree
connection. -

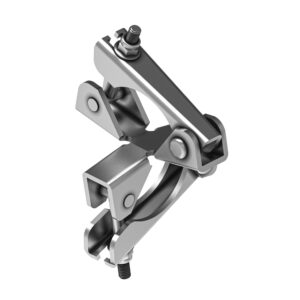

Cuplock SystemPressed Double Coupler
Couplers Are used to connect the scaffolding tube
to the standards.
Double coupler is used to connect 90 degree
connection. -

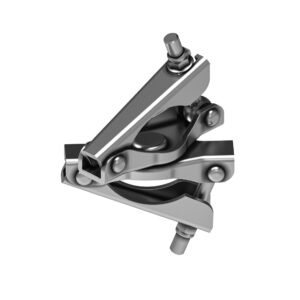

Cuplock SystemPressed Swivel Coupler
Couplers Are used to connect the scaffolding tube
to the standards.
Double coupler is used to connect 90 degree
connection. -
Cuplock System
Top Cup
56.00 EGP50.40 EGPThe Top Cup is a critical component in modular scaffolding systems, particularly in Cuplock scaffolding. It is positioned at fixed intervals along the vertical standard and serves as a locking mechanism for horizontal ledgers and transoms.
-
Cuplock SystemWTD Adjustable Base Jack
Adjustable base jacks are made of steel plate, screw
jack and steel handle.
adjustable base jacks available in two types (Hollow
and solid). -
Cuplock SystemWTD Adjustable U Jack
Adjustable U-Head jack are made of a “U” shaped
steel plate, screw jack and steel handle.
adjustable U-Head jack are available in two types
(Hollow and solid). -
Cuplock SystemWTD Base Plate
Base Plate provides a flat support for WTD Cuplock
structure.
It uses as simple support for WTD Cuplock structure
in case of no need adjusting level. -
Cuplock SystemWTD Beam Bracket
Beam Bracket have two blade ends connected to
standard.
To provide vertical support for internal beams of
slab and transfer the applied load to WTD Cuplock
Standard. -

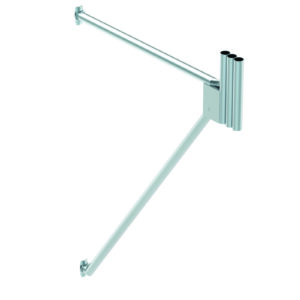

Cuplock SystemWTD Cantilever Frame
Cantilever used To provide vertical support for edge
beams of slab and transfer the applied load to WTD
Cuplock Standard. -

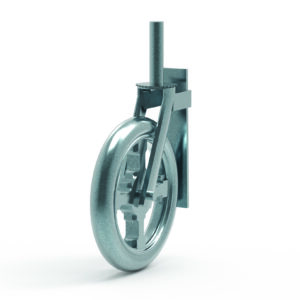

Cuplock SystemWTD Castor Wheel
Castor Wheel Use when Cuplock is erected
as a Mobile Tower. The shank of the wheel fits into
the base of the Cuplock standard. Secured with a
hexagonal head bolt.
