Shore Load System
-

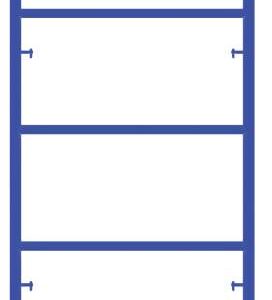

Shore Load SystemSHORE LOAD FRAME
This is the main tower element and it has two
sizes- (180 cm, 110 cm high and 120 cm wide) Vertical
tube diameter of 60.3mm -
Cuplock SystemWTD Adjustable Base Jack
Adjustable base jacks are made of steel plate, screw
jack and steel handle.
adjustable base jacks available in two types (Hollow
and solid). -
Cuplock SystemWTD Adjustable U Jack
Adjustable U-Head jack are made of a “U” shaped
steel plate, screw jack and steel handle.
adjustable U-Head jack are available in two types
(Hollow and solid). -
Cuplock SystemWTD Castor Wheel
Castor Wheel Use when Cuplock is erected
as a Mobile Tower. The shank of the wheel fits into
the base of the Cuplock standard. Secured with a
hexagonal head bolt. -

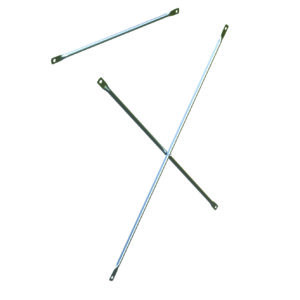

H-Frame SystemWTD Cross Brace
Cross and Horizontal brace are considered as
structure link of frame systems manufactured
by steel tube ¾ inch 2mm thickness. -
-

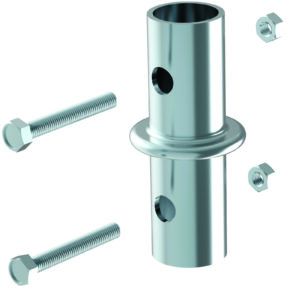

Cuplock SystemWTD Round Spigot
Round Spigot Used to join one WTD Cuplock Standard to another vertically. Bolt is placed transversely through the Spigot and Cuplock Standard in case of lifting the WTD Cuplock structure.
-

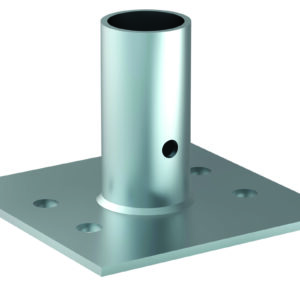

Cuplock SystemWTD Socket Base
Socket Base is used in combination with WTD
Adjustable Universal Jack and is drilled to permit
the insertion of a securing bolt if required. -

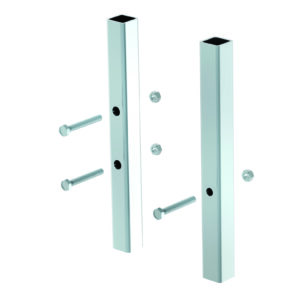

Cuplock SystemWTD Square Spigot
Square Spigot Used to join one WTD Cuplock
Standard to another vertically.
