SPECIFICATION
Purpose
Provides secure anchoring for formwork, scaffolding bases, and temporary supports, preventing movement and deformation during construction, particularly under concrete pressure.
Components
- Stakes (Ground Pins) High-strength steel stakes driven into the ground with a pointed end for easy insertion, featuring holes or slots for connectors.
- Wedge Clamps Steel clamps that attach formwork or braces to stakes, ensuring stability.
- Connectors Includes bolts, nuts, and brackets for fastening stakes to formwork components.
- Locking Mechanisms Secure the system in place once aligned to prevent movement.
Technical Specifications
- Material High-strength, corrosion-resistant steel for stakes, clamps, and connectors.
- Size Stakes typically range from 0.5 m to 1.5 m in length, with diameters between 12 mm and 25 mm.
- Weight Stakes weigh between 1 kg to 5 kg based on length and diameter.
- Load Capacity Varies with stake size, soil type, and depth; thicker and longer stakes provide more anchoring strength.
- Surface Finish Galvanized or powder-coated for rust resistance in outdoor conditions.
Advantages
- Stability Strong anchoring for secure positioning during concrete pouring.
- Easy Installation Quickly driven into the ground, saving time and labor.
- Versatility Suitable for walls, columns, slabs, and scaffolding bases.
- Reusable Durable materials allow for repeated use across projects, reducing costs.
Applications
- Wall Formwork Anchors vertical formwork panels for stability during pouring.
- Column Formwork Secures column panels, especially for tall columns needing extra stability.
- Slab Formwork Supports slab edges on uneven or sloped ground.

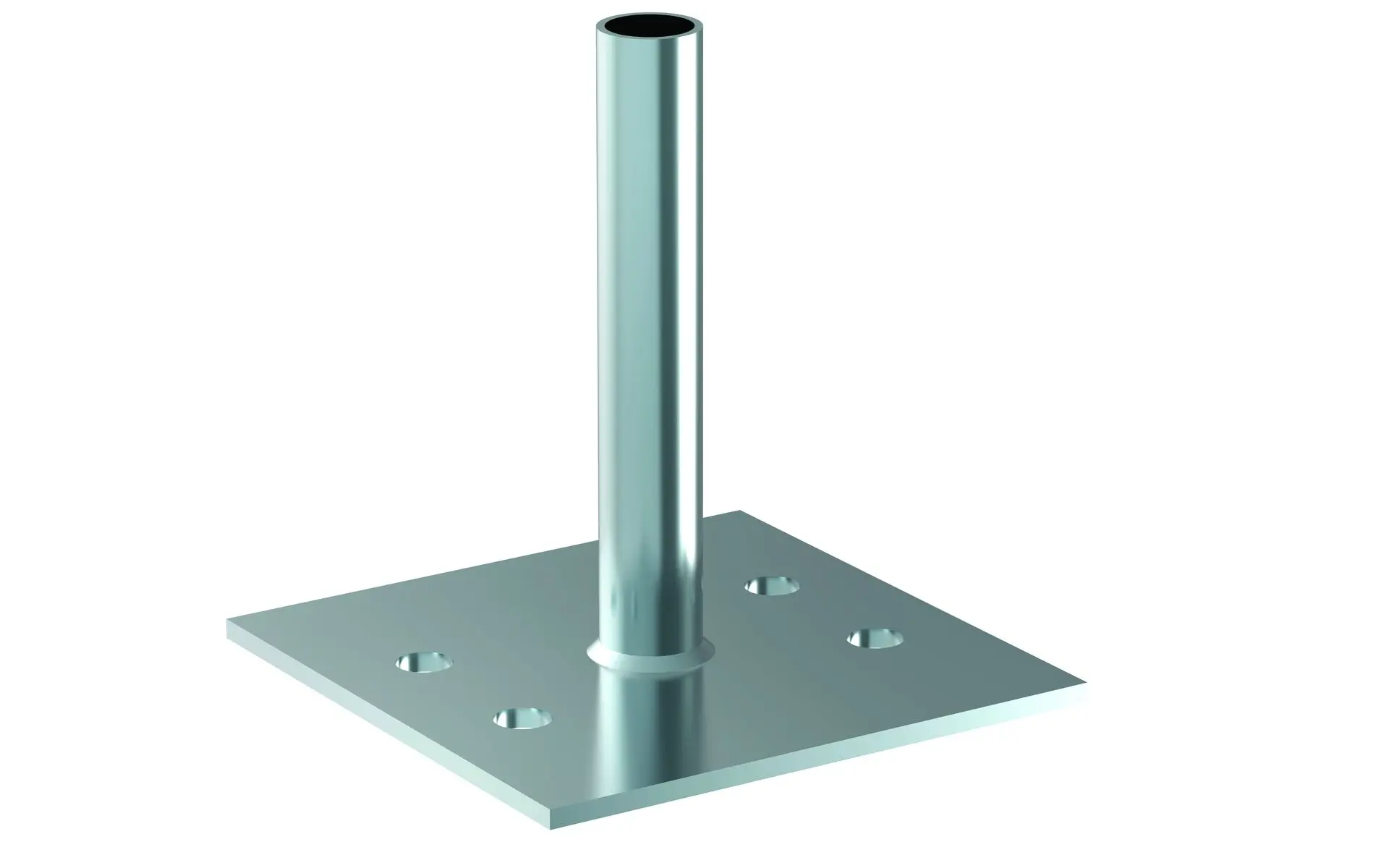

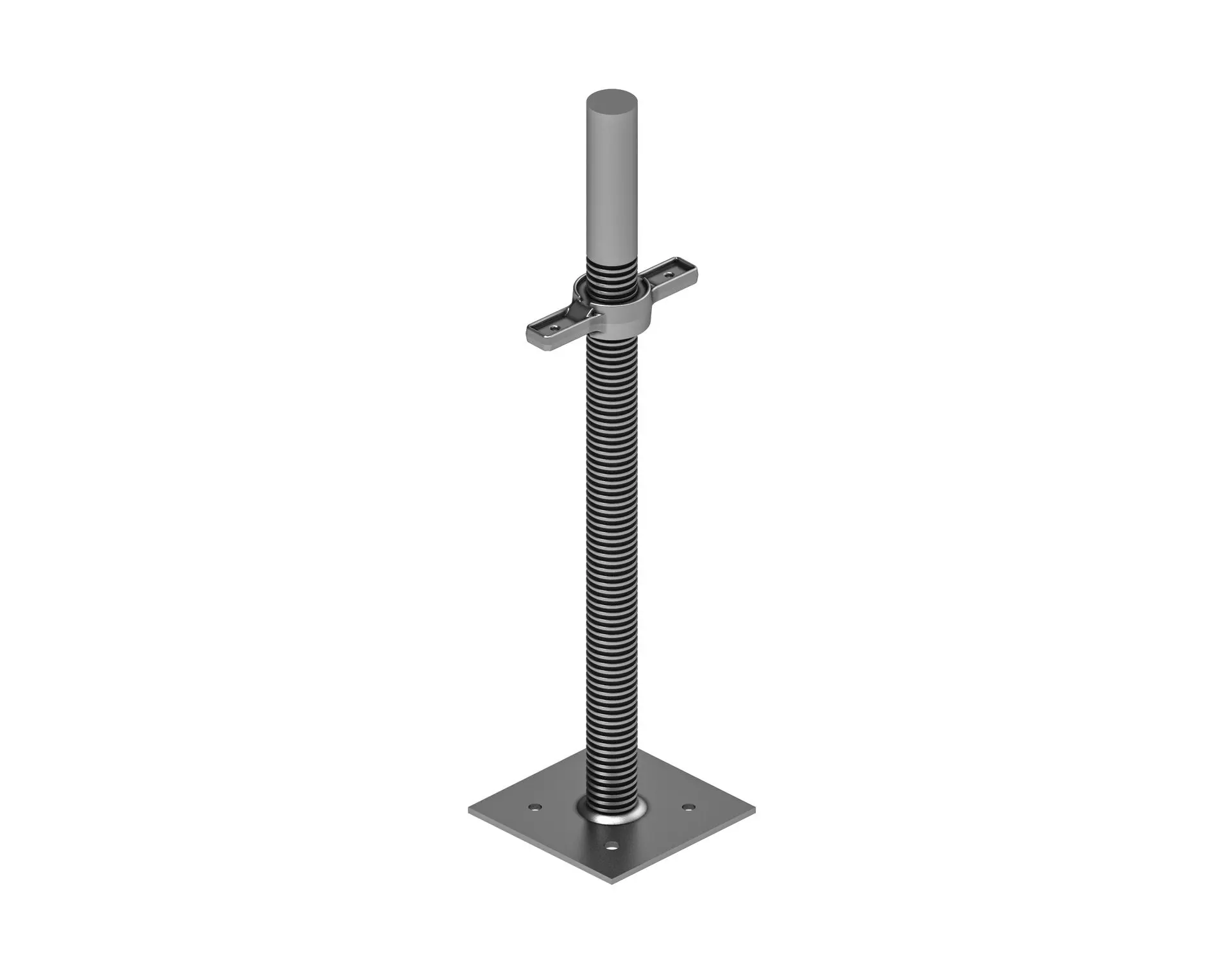

- Scaffolding Bases Provides a stable foundation, preventing movement or tipping.
