Main Features
Purpose
Modular formwork and support structure for shaping concrete elements of various sizes, capable of withstanding high-pressure loads during concrete pouring.
Material
Made of high-grade, corrosion-resistant steel, often galvanized or painted for durability.
Modularity
Composed of steel panels, beams, and support elements that can be configured for multiple projects, promoting cost efficiency.
High Load-Bearing Capacity
Designed to maintain stability under heavy concrete loads, ensuring structural integrity.
Versatility
Suitable for various applications, including wall formwork, slab support, and column formwork, customizable for specific project needs.
Components of the Steel Blank System

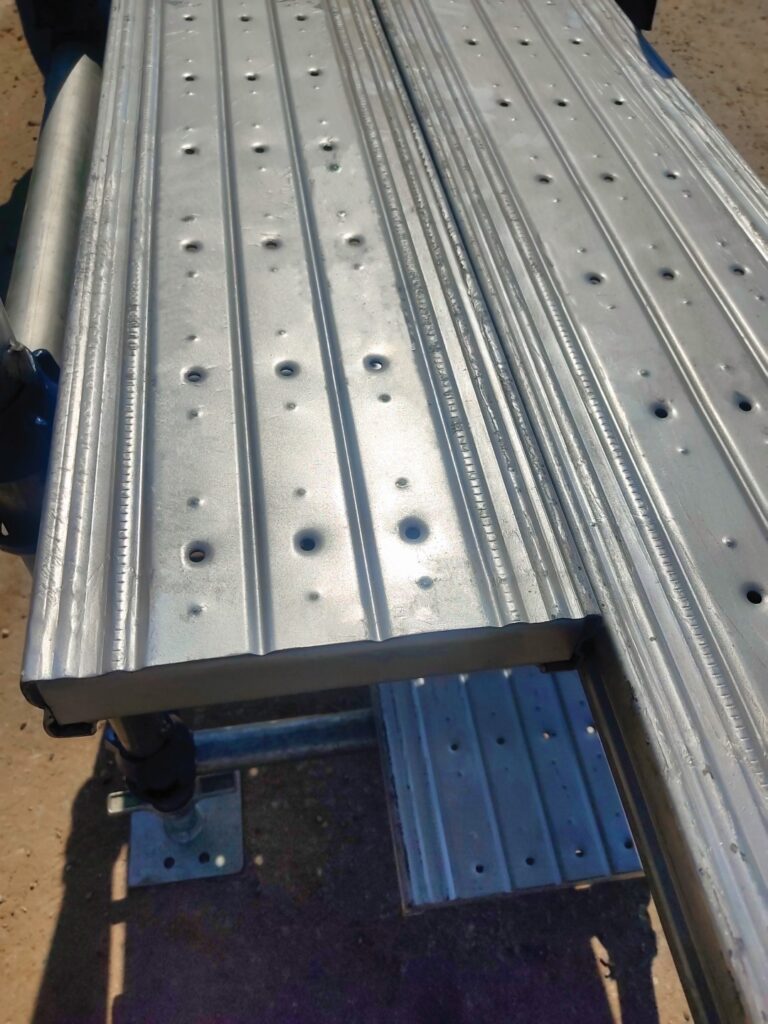

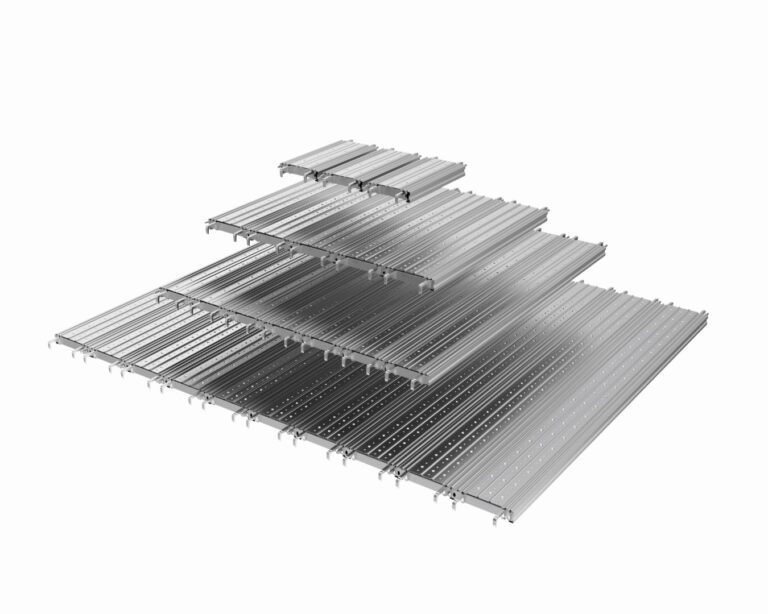

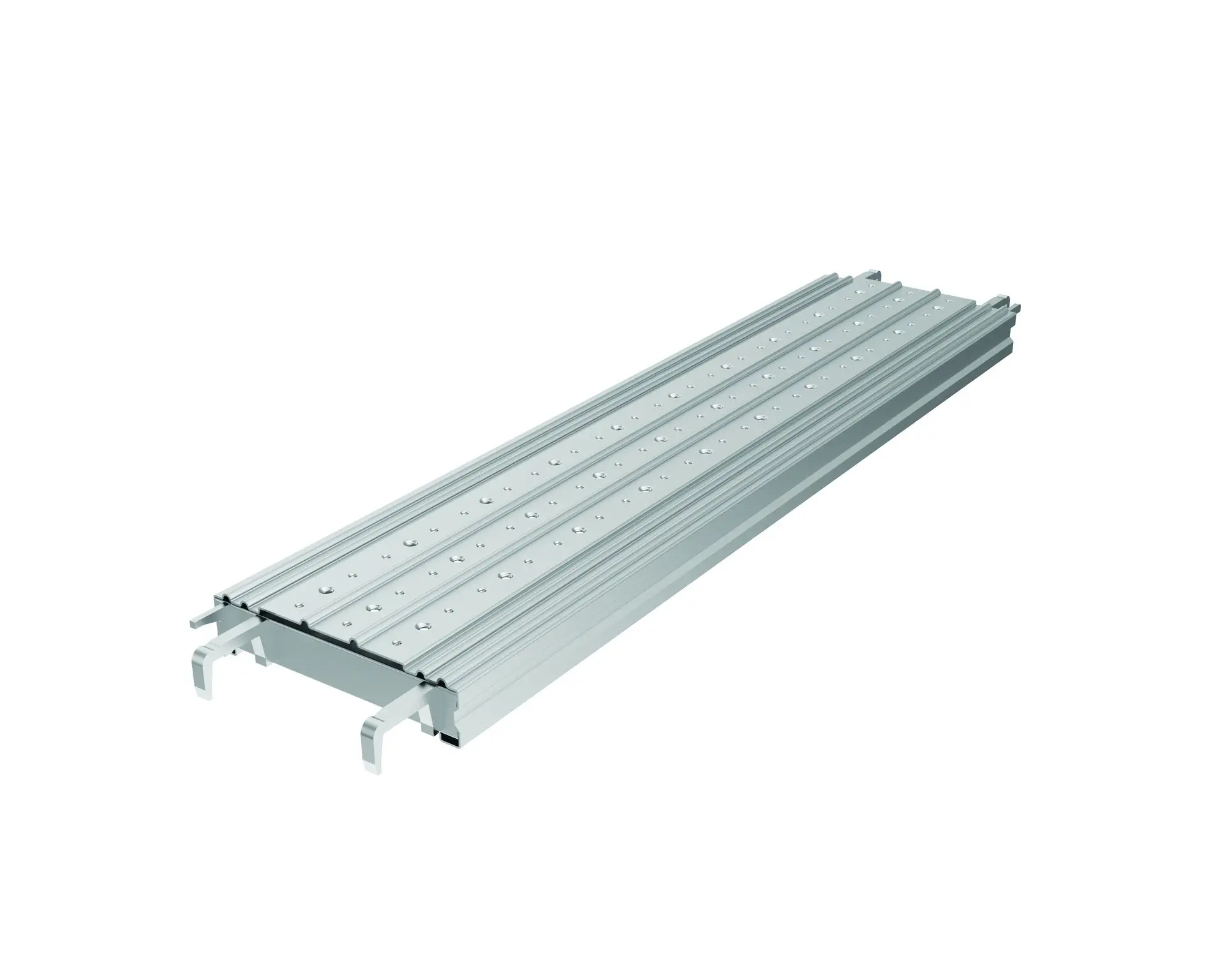

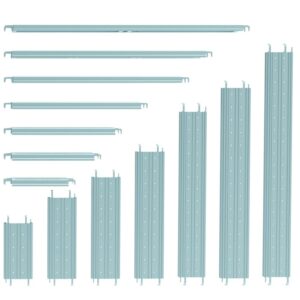

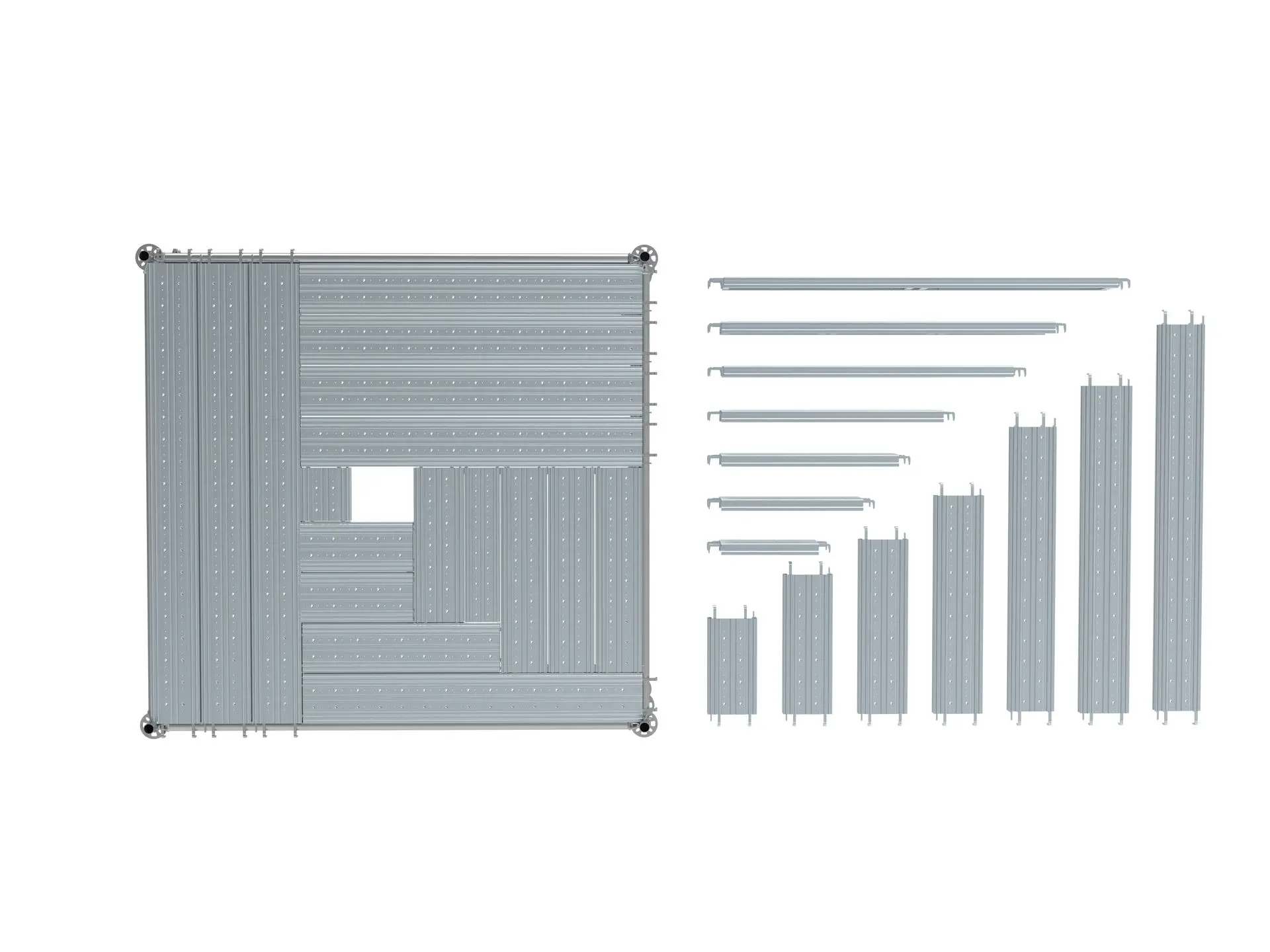

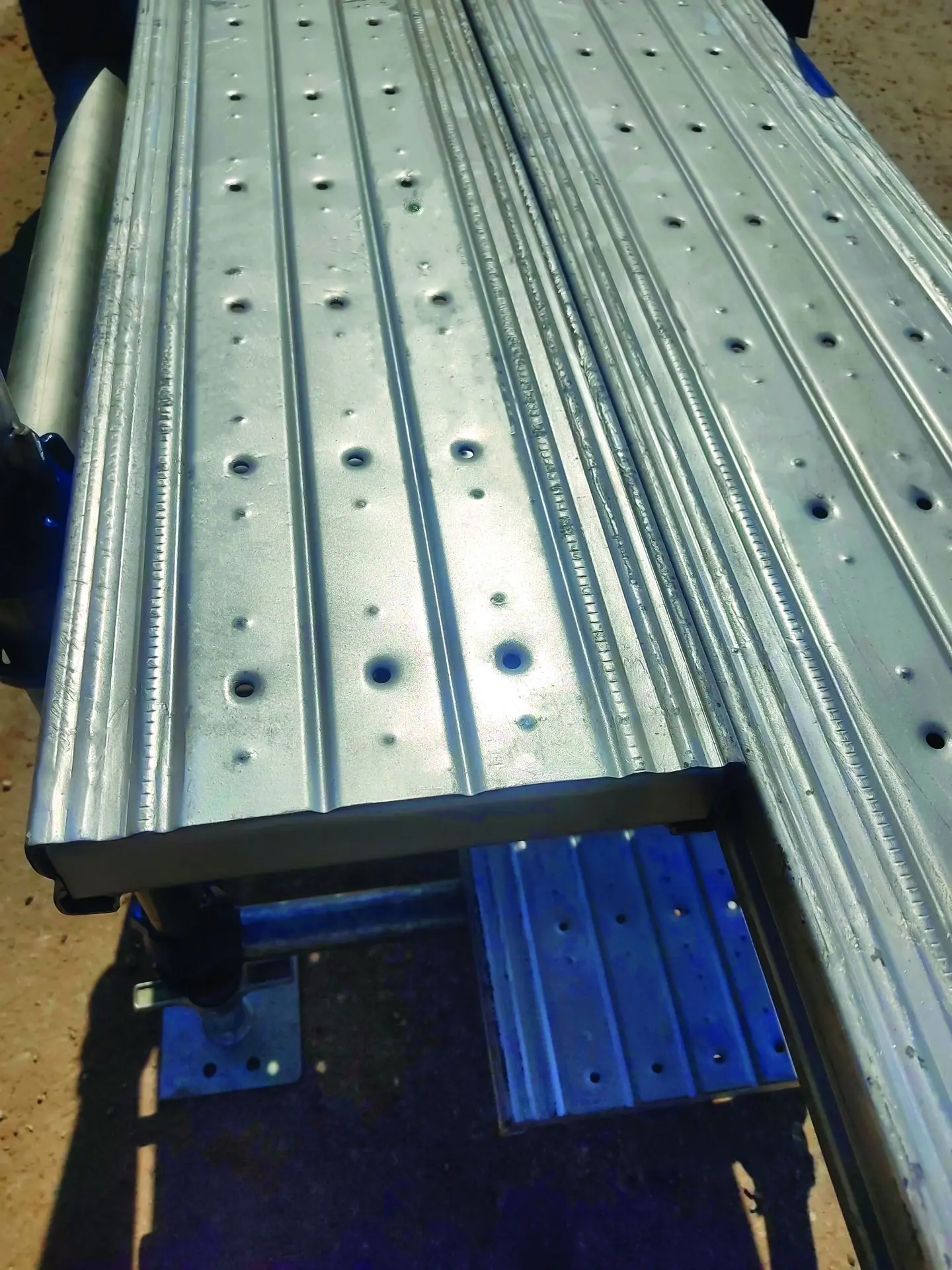

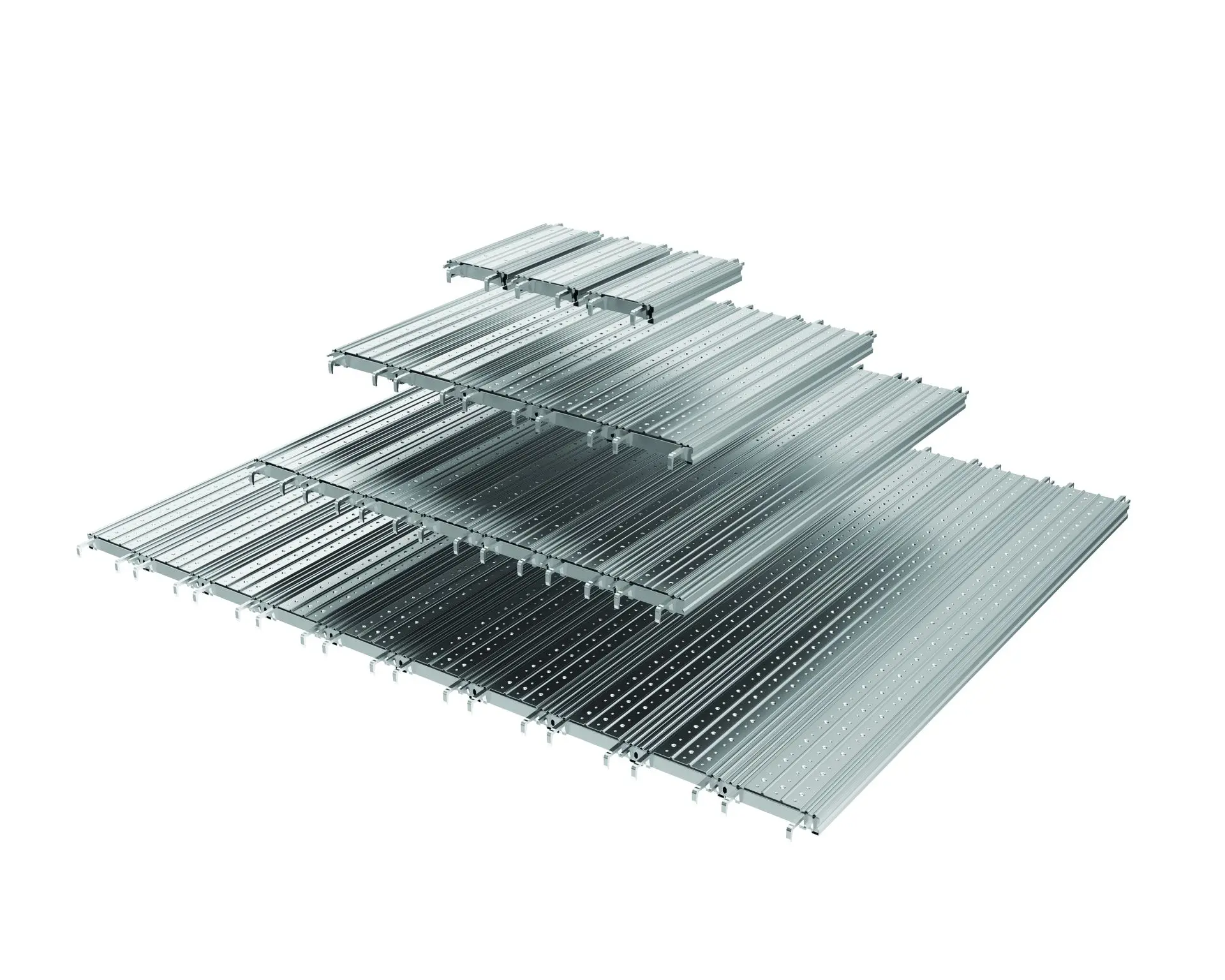

- Steel Panels: Provide a flat surface for concrete shaping, available in various sizes, reinforced for stability with connection slots or holes.
- Steel Beams: Offer horizontal and vertical support, distributing load evenly across formwork.
- Connecting Elements: Clamps, wedges, bolts, and splice connectors secure panels and beams together.
- Support Elements: Adjustable props, U-heads, and base plates support panels during concrete setting.
- Bracing: Cross braces between panels and beams prevent movement during pouring.
Technical Specifications
- Material: High-strength steel with corrosion resistance.
- Panel Sizes: Typically 0.5 m to 3 m in height, 0.3 m to 1.2 m in width; thickness from 2 mm to 5 mm for high-pressure loads.
- Load Capacity: Supports heavy concrete loads, depending on configuration.
- Adjustability: Adjustable props and connectors allow dimension customization.
- Connections: Secure connection points with bolts, clamps, and fasteners.
Advantages
- High Strength: Durable steel for large-scale projects.
- Reusability: Designed for multiple uses, reducing costs.
- Customizable: Modular system adapts to varied requirements.
- Easy Assembly: Quick setup with standard connectors, saving labor time.
Applications
- Wall Formwork: Strong, stable surface for concrete walls.
- Slab Support: Used for shoring in slab casting.
- Column Formwork: Suitable for forming concrete columns.
- Complex Structures: Adaptable to support curved or angled concrete structures.
