Material

Steel 37 (ST37).

Installation

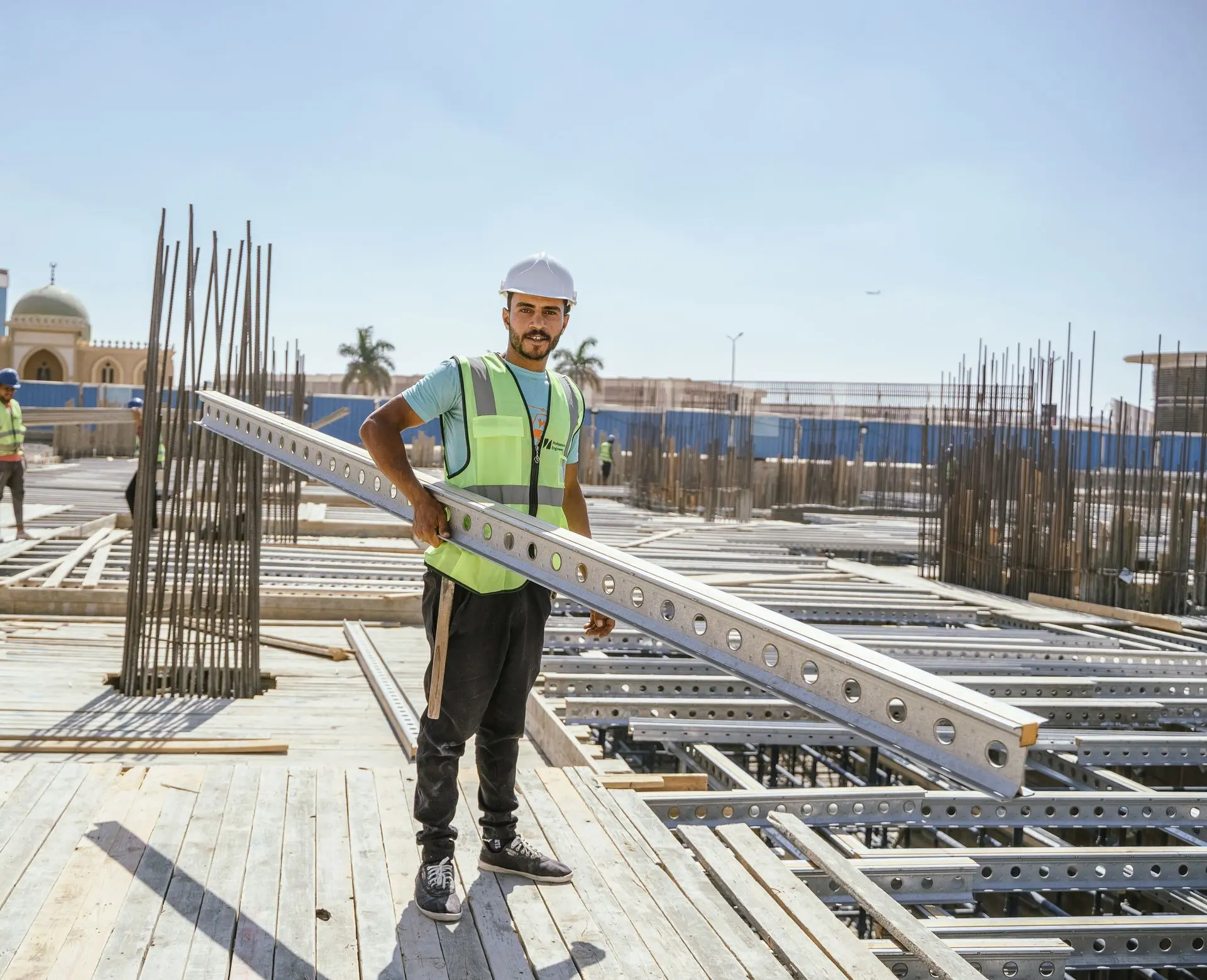

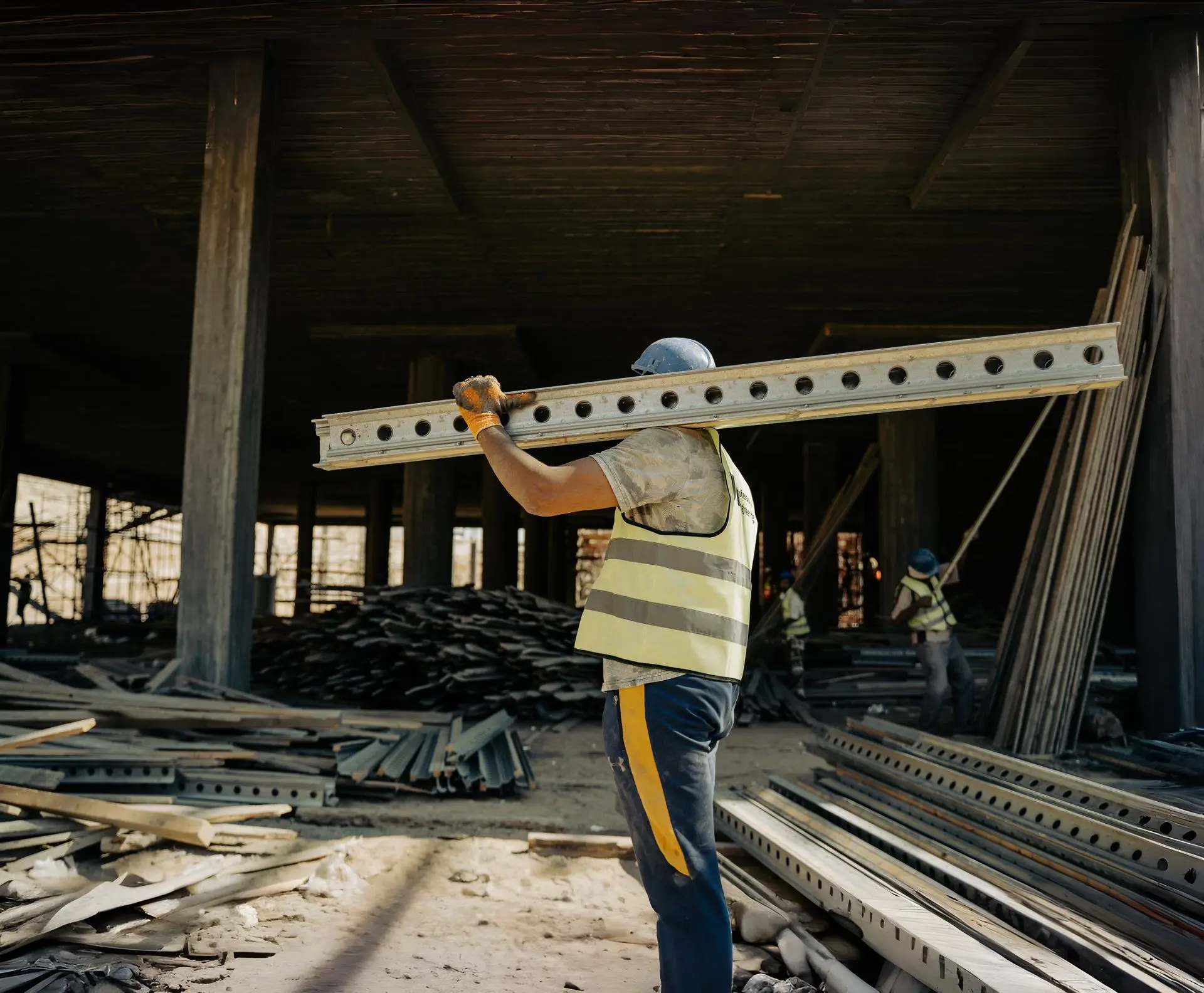

Lightweight (<6.2 kg/m, including nailing strip) for ease of handling; designed for joist or stringer use.

Features

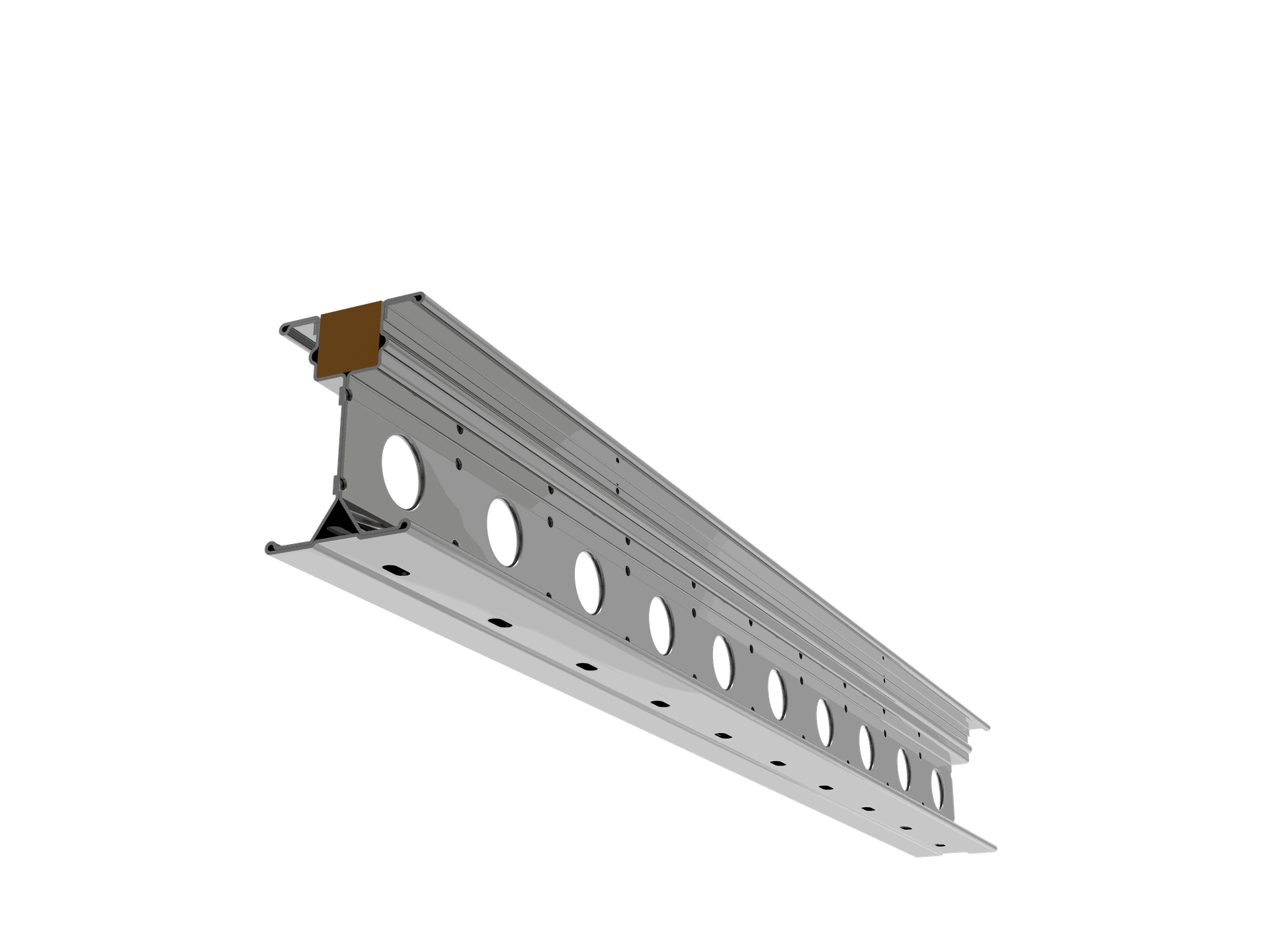

• 38×38 mm nailing strip, pre-installed and replaceable.

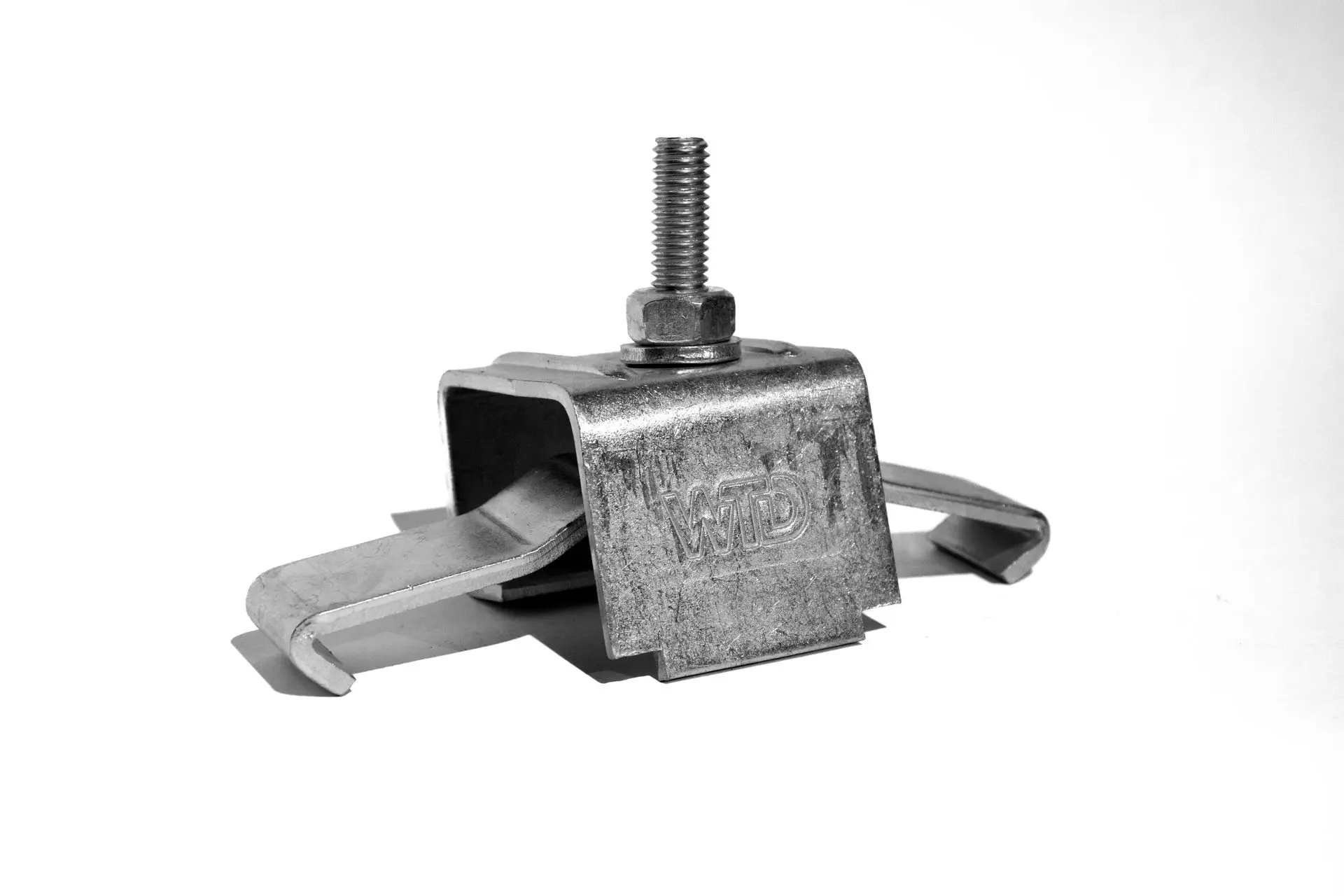

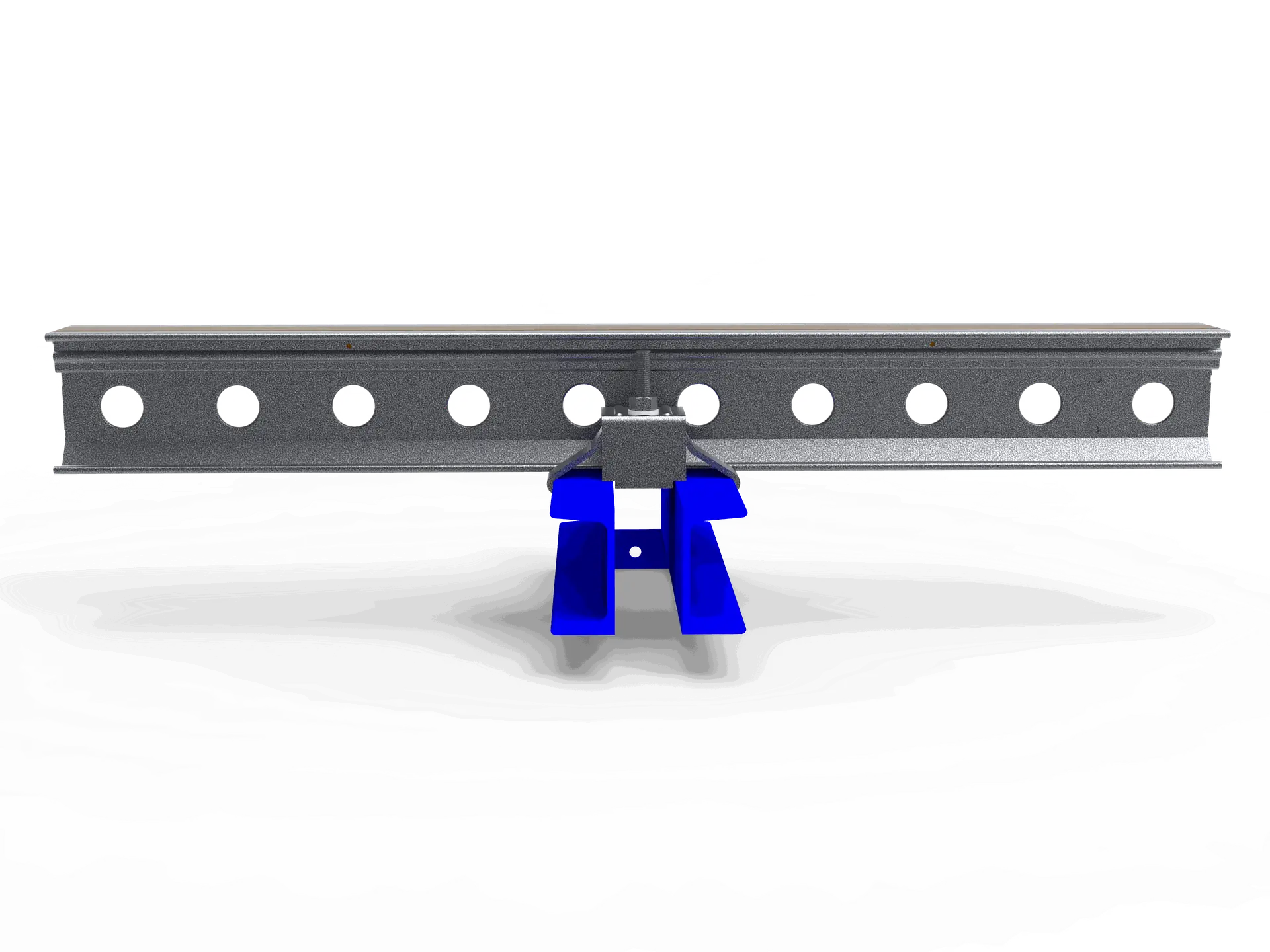

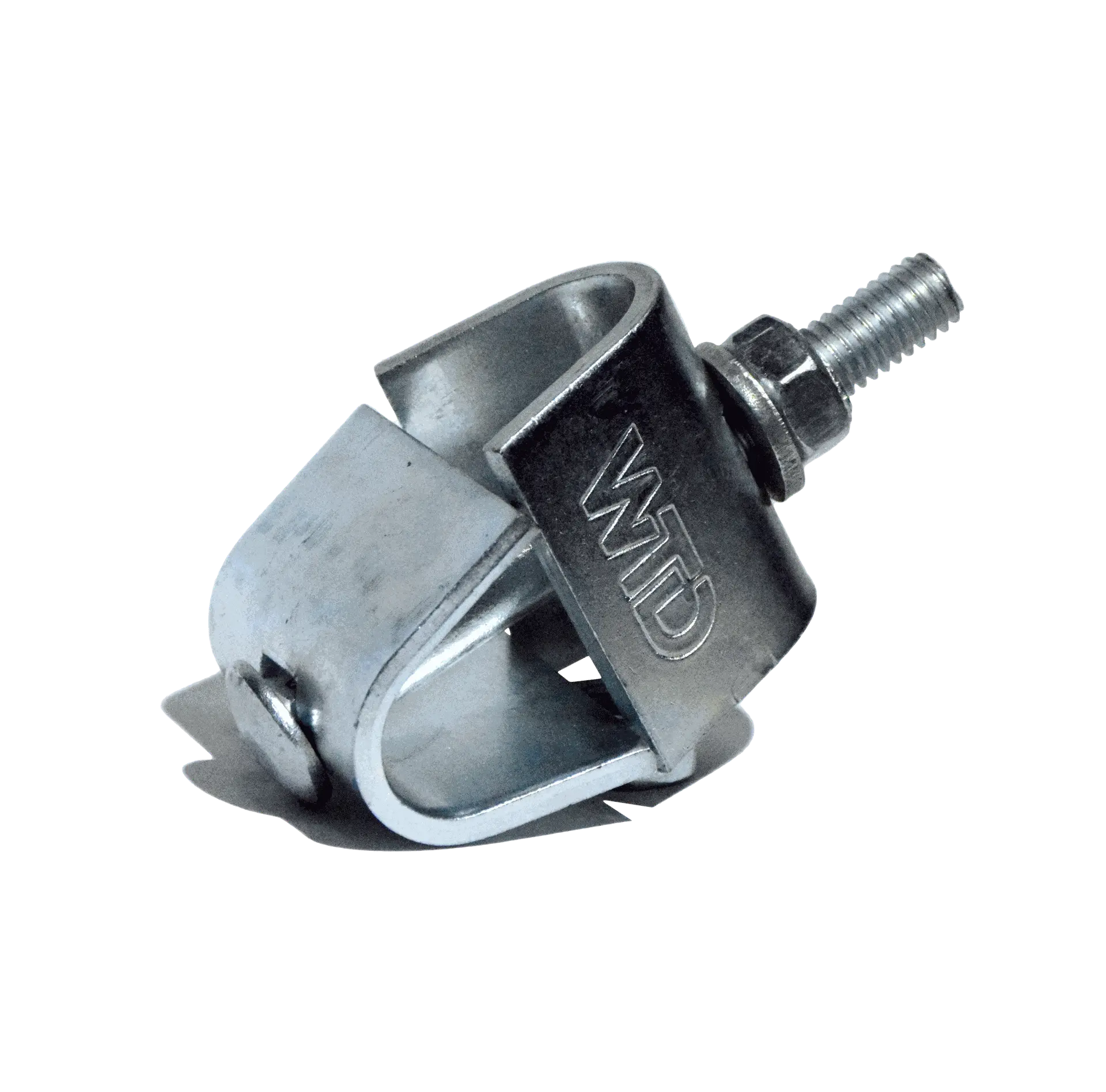

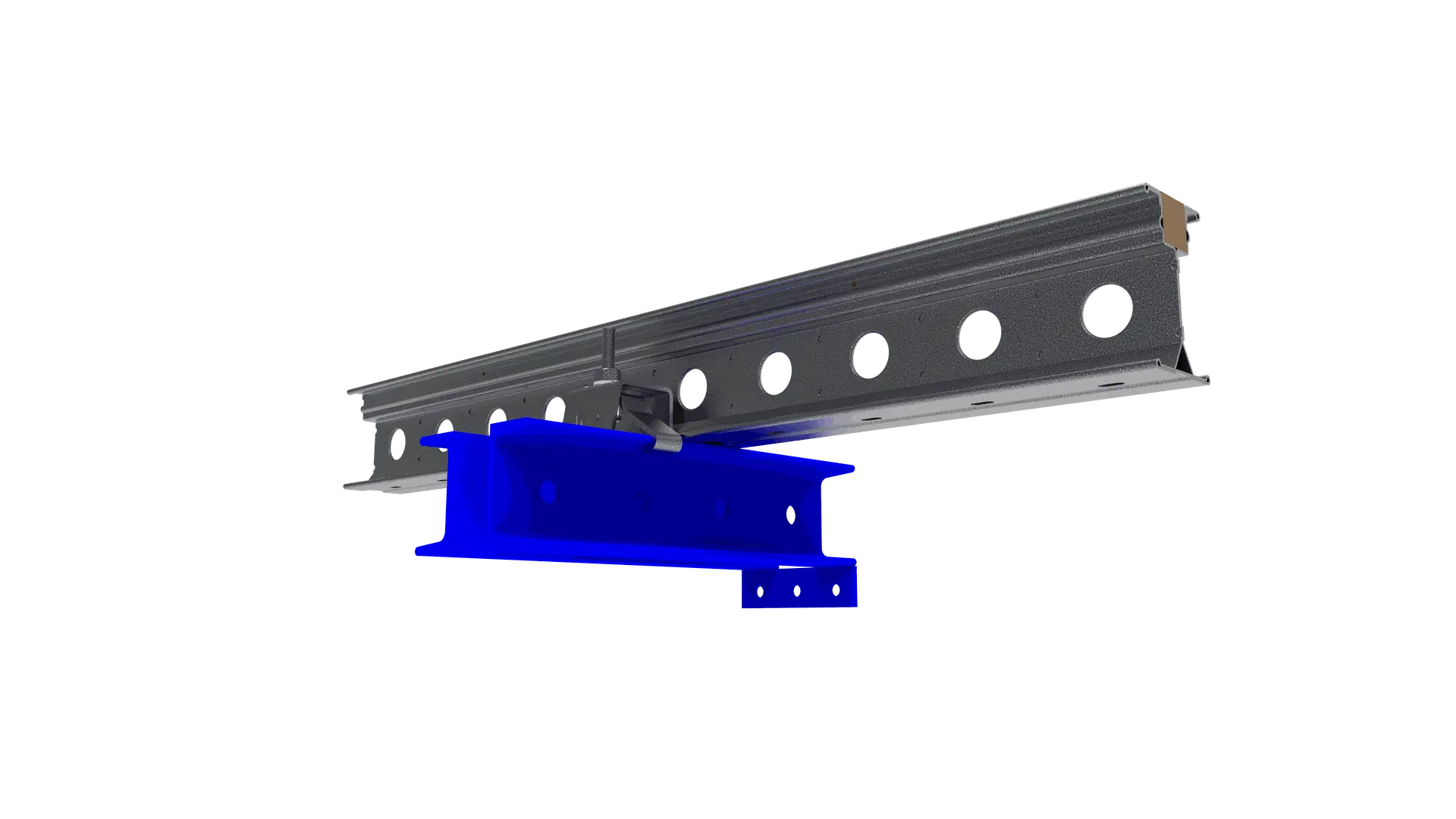

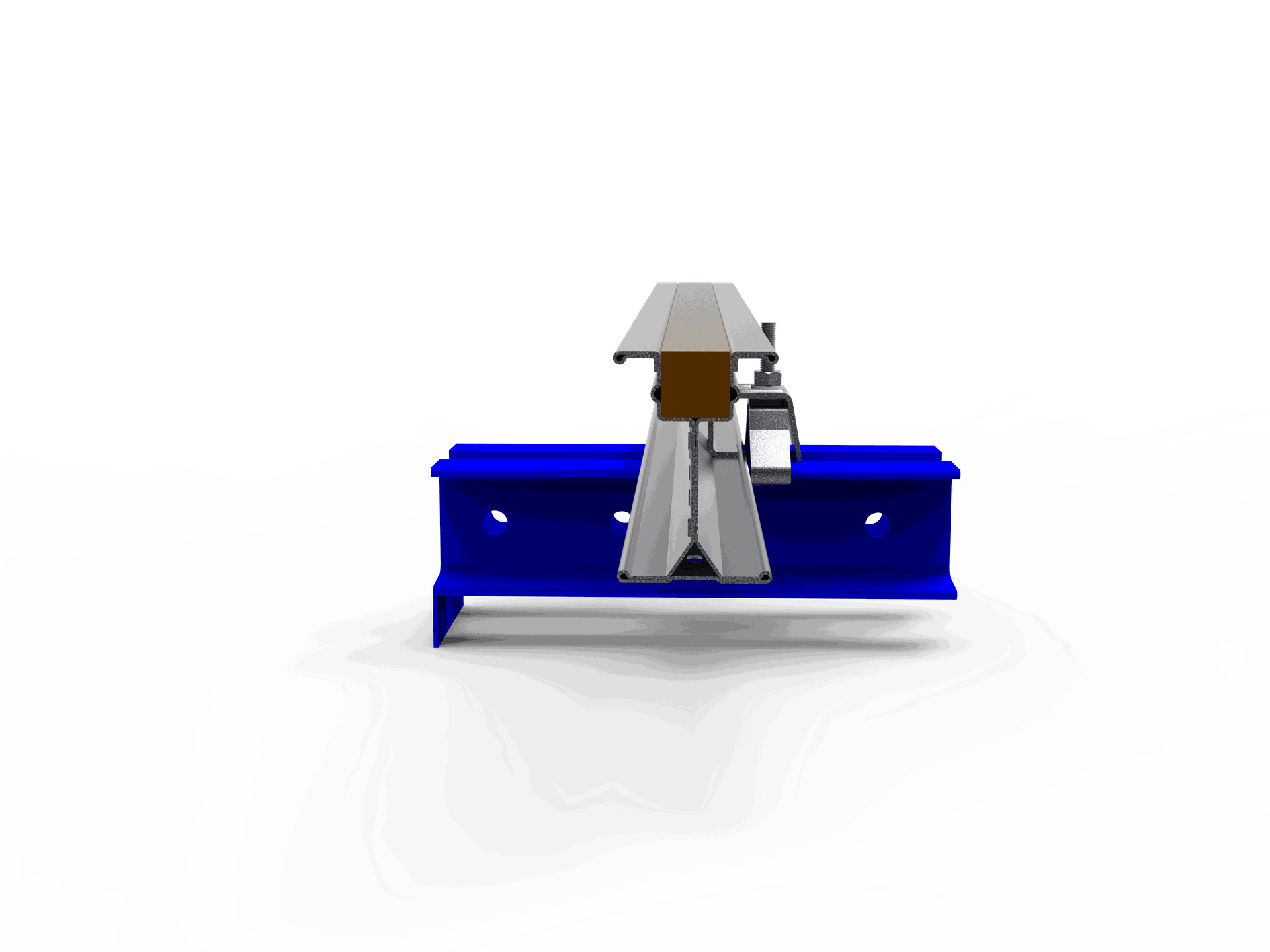

• Lower lip compatible with WTD Beam Clamps.
• Compatible with U-heads for shoring jacks and post shores.
• 120 mm height compatible with other joists.

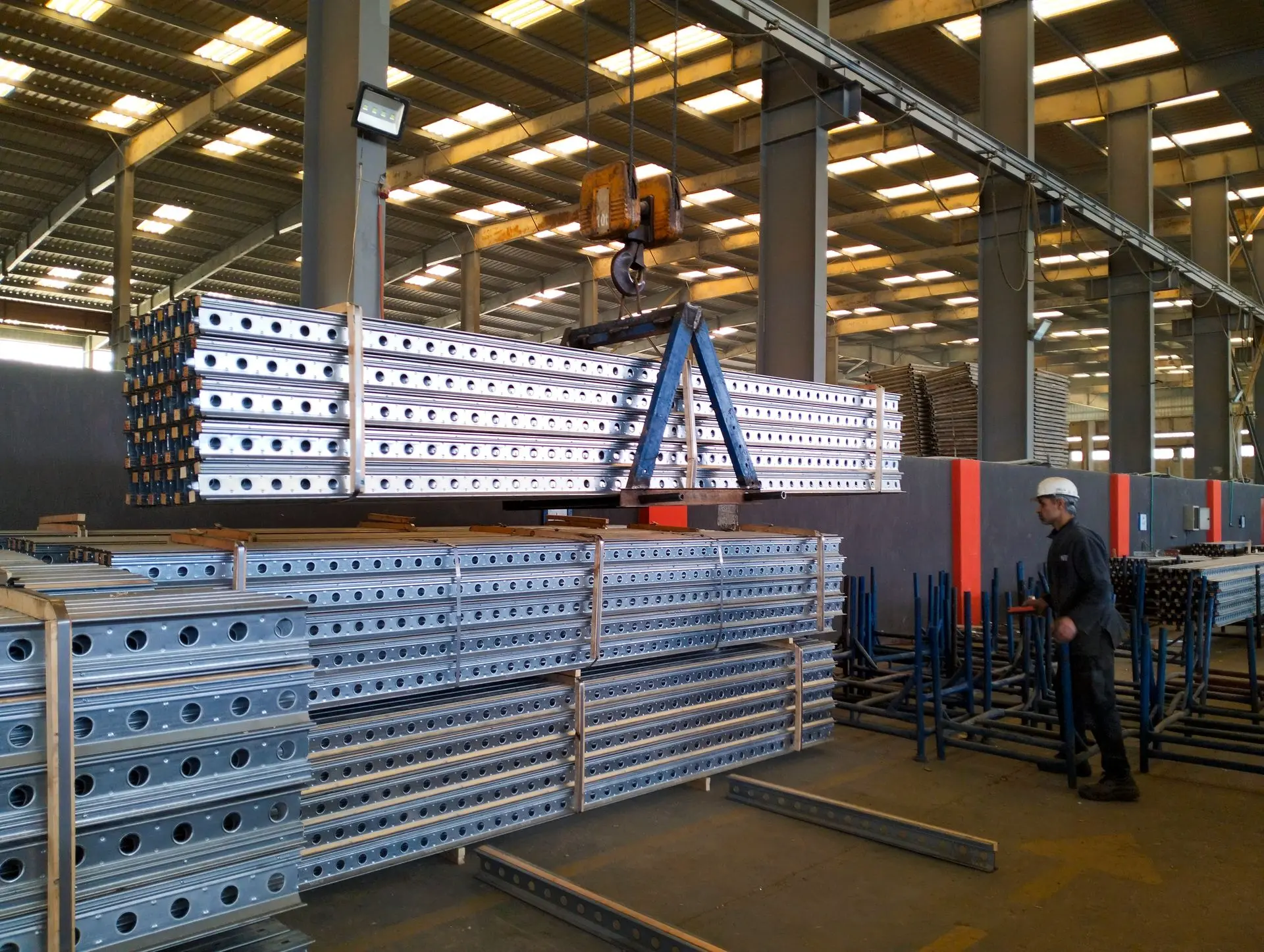

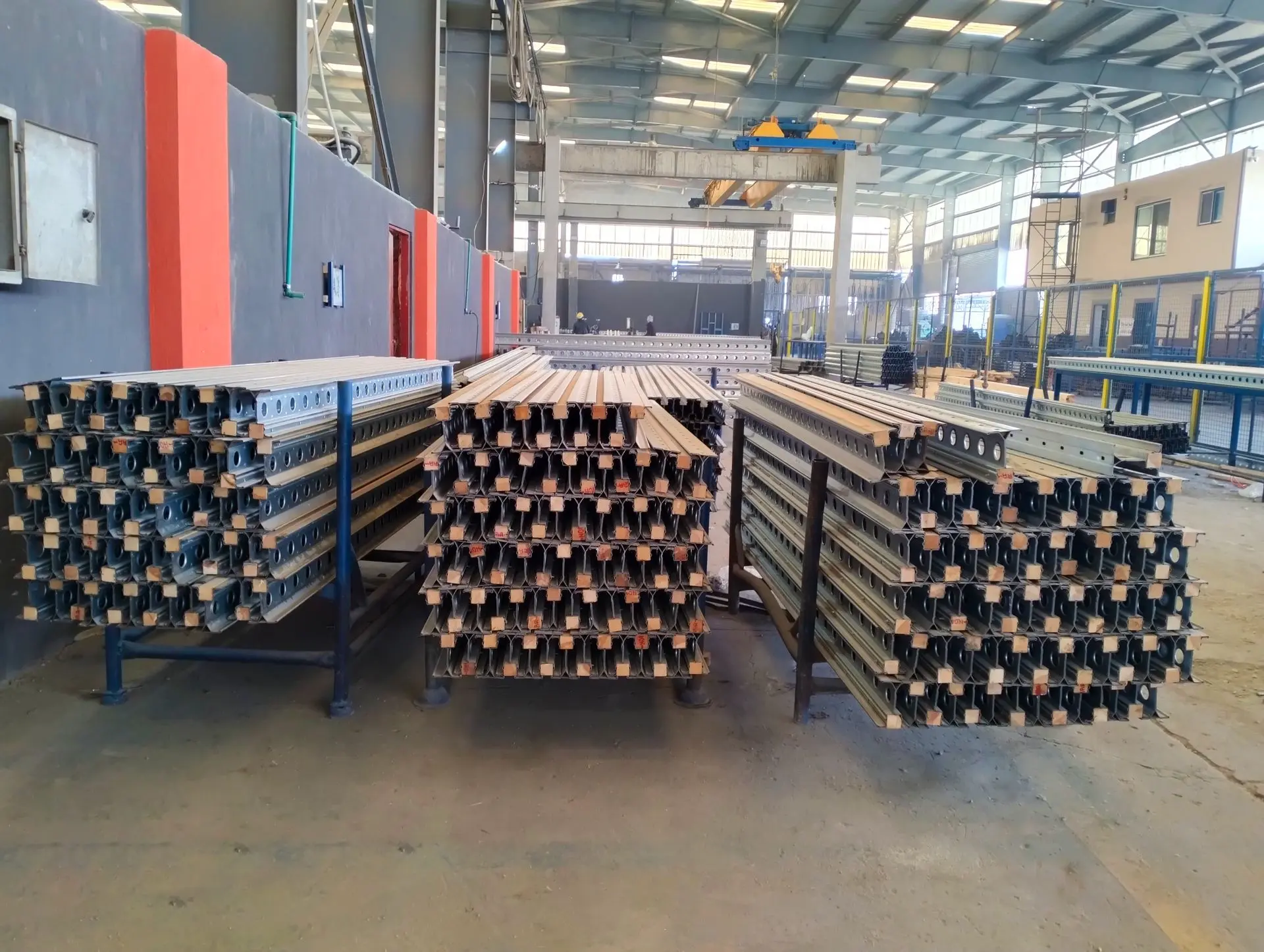

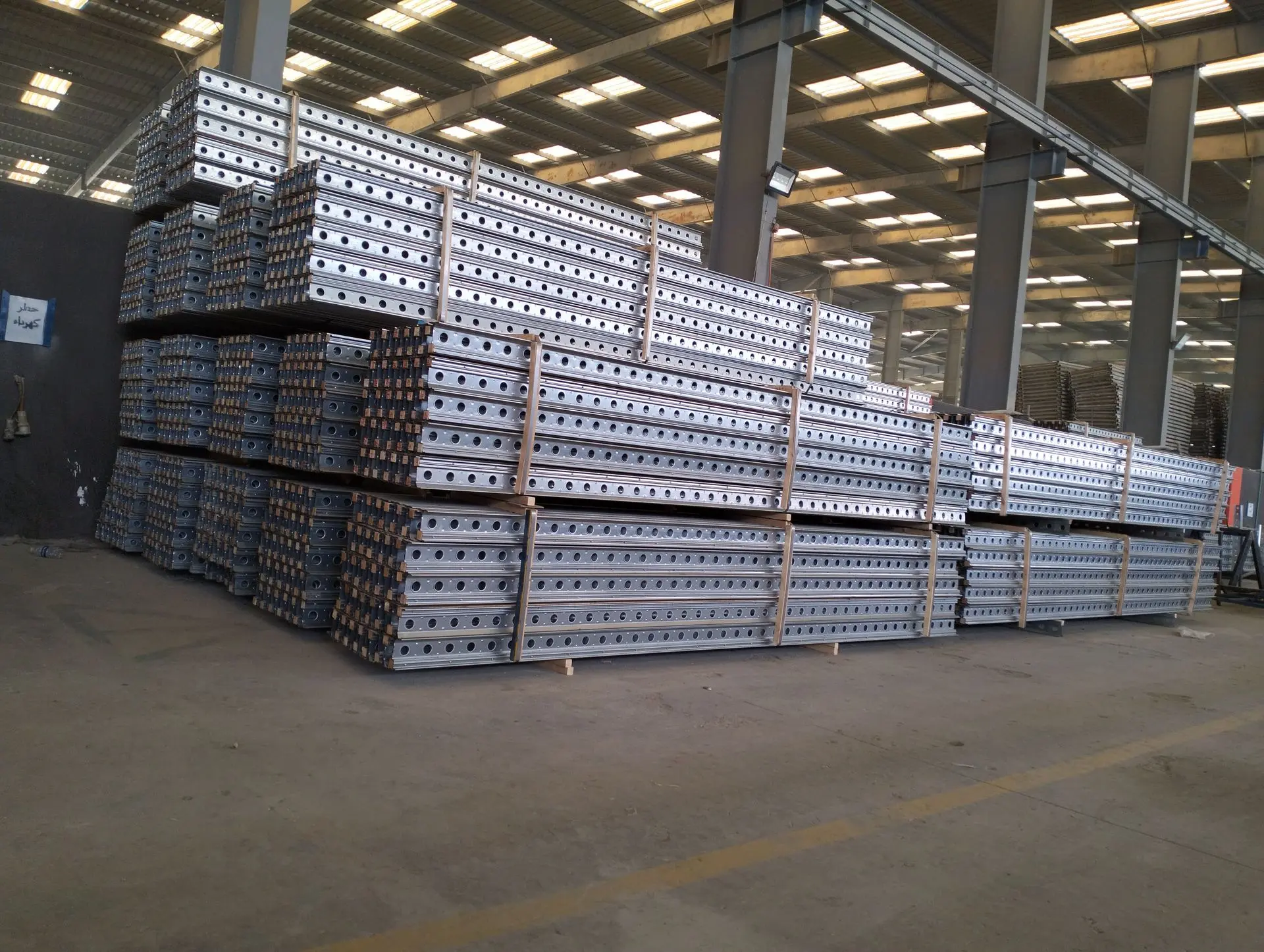

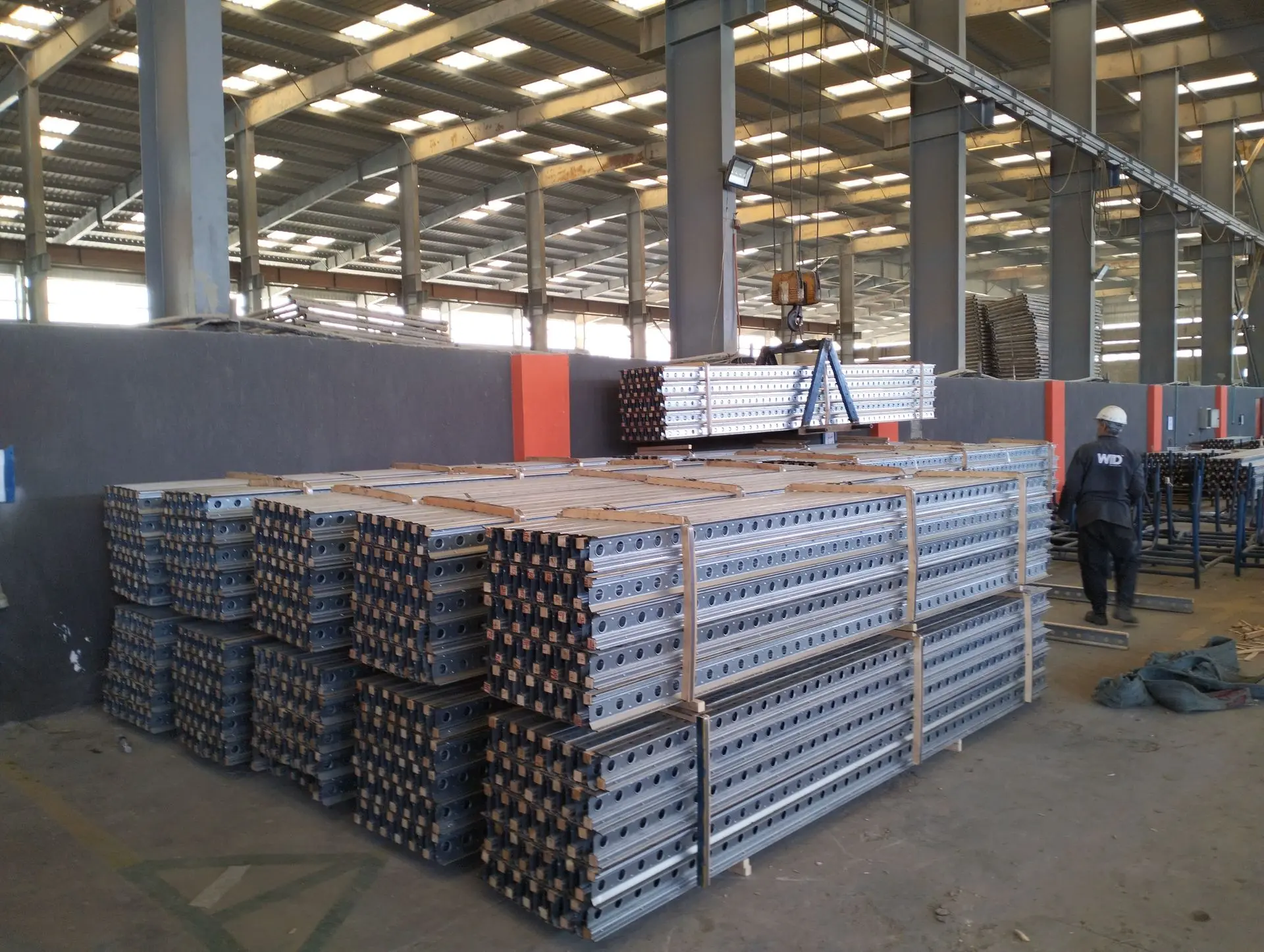

Storage

Store on firm, level ground, preferably concrete or paved, with breathable tarps for weather protection.

Technical Specifications

• Allowable Shear Force: 49 KN (11 Kips).
• Minimum Yield Stress: 235 MPA (34 KSI).
• Allowable Bending Moment (Strong Axis): 9.63 KN.m (6.90 kips.ft).
• Second Moment of Inertia: 195.031 cm⁴ (4.686 in⁴).

Comparison

Weighs 6.2 kg/m (4.17 lbs./ft), lighter than some competitors, with robust bending and shear capacities.

Sizes

Lengths from 1.00 m to 5.90 m for flexible project use.
